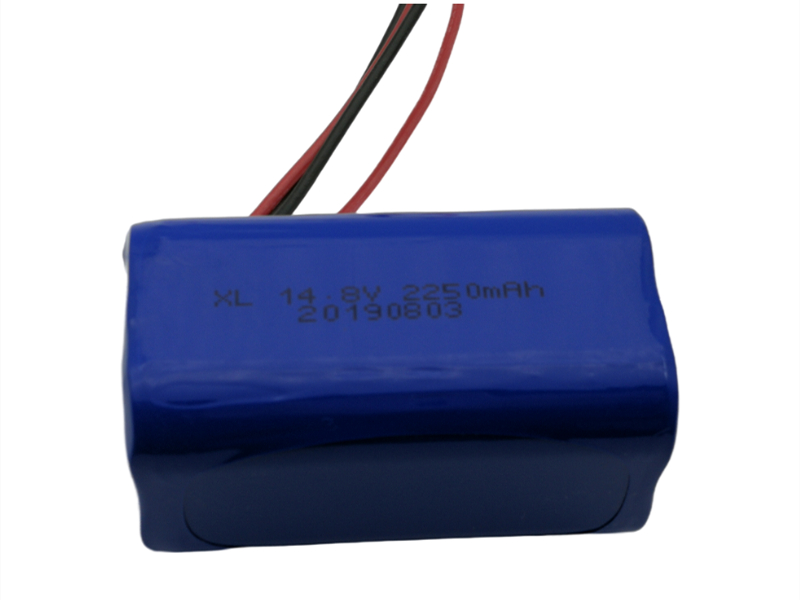

14.8V 2250mAh cylindrical lithium battery
14.8V Cylindrical Lithium Battery Product Model: XL 14.8V 2250mAh
  Technical parameters of 14.8V cylindrical lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)
  Single battery model: 18650
  Packing method: industrial PVC heat shrinkable film
14.8V Cylindrical Lithium Battery Product Model: XL 14.8V 2250mAh
Technical parameters of 14.8V cylindrical lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)

Single battery model: 18650
 · Single battery voltage: 3.7V
 · Nominal voltage after the battery pack is assembled: 14.8V
 · Single battery capacity: 2.25Ah
 · Battery combination: 4 strings and 1 parallel
 · Battery voltage range after combination: 12V~16.8V
 · Battery capacity after combination: 2.25AH
 · Battery pack power: 33.3W
 · Battery pack size: 39*39*68mm
 · Maximum discharge current: <2.25A
 · Instantaneous discharge current: 4.5A~6.75A
 · Maximum charging current: 0.2-2C
 · Charge and discharge times: >500 times
 · Main chip: (Seiko, TI)
 14.8V cylindrical lithium battery
 · Comply with relevant national standards and requirements for batteries
 · All finished battery products have been calibrated and tested before leaving the factory and can be used normally
