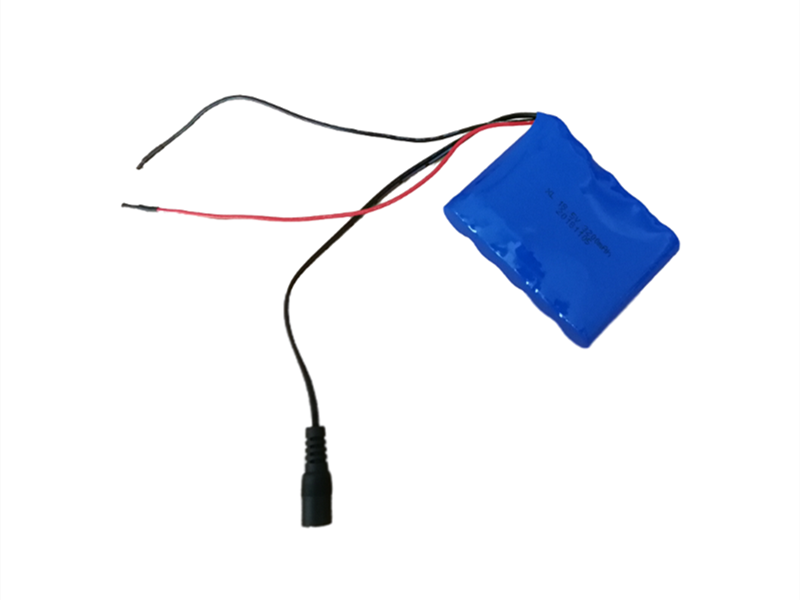

18.5V 3200mAh cylindrical lithium battery
18.5V Cylindrical Lithium Battery Product Model: XL 18.5V 3200mAh
  18.5V cylindrical battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
  Single battery model: 18650
  Packing method: industrial PVC heat shrinkable film

18.5V cylindrical lithium battery Product model: XL 18.5V 3200mAh
Technical parameters of 18.5V cylindrical lithium battery (specific design according to customer requirements-voltage/capacity/size/line)
  Single battery model: 18650

  ·Single battery voltage: 3.7V
  ·Nominal voltage after the battery pack is assembled: 18.5V
  ·Single battery capacity: 3.2Ah
  ·Battery combination: 5 strings and 1 parallel
  ·Battery voltage range after combination: 12.5v-21v
  ·Battery capacity after combination: 3.2ah
  ·Battery pack power: 59.2V
  ·Battery pack size: 19*93*68mm
  ·Maximum discharge current: <3.2A
  ·Instantaneous discharge current: 6.4A-9.6A
  ·Maximum charging current: 0.2-0.5c
  ·Charging and discharging times: >500 times
  ·Main chip: (Seiko, TI)

18.5V cylindrical lithium battery
  ·Comply with relevant national battery standards and requirements
  ·All finished batteries are calibrated and tested before they leave the factory. Can be used directly
