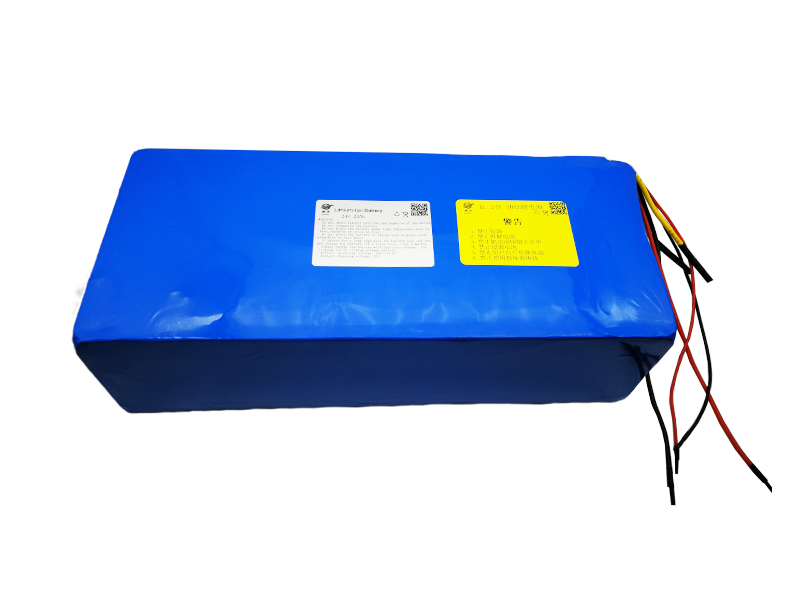

24V 20000mAh cylindrical lithium battery
24V cylindrical lithium battery product model: XL 24V 20000mAh
24V cylindrical lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
 Single battery model: 18650
 Packing method: industrial PVC heat shrinkable film
24V Cylindrical Lithium Battery Product Model: XL 24V 20000mAh
Technical parameters of 22.2V cylindrical lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)

Single battery model: 18650
 · Single battery voltage: 3.7V
 · Nominal voltage after the battery pack is assembled: 24V
 · Single battery capacity: 2.5Ah
 · Battery combination mode: 6 strings and 8 parallels
 · Battery voltage range after combination: 18V~25.2V
 · Battery capacity after combination: 20AH
 · Battery pack power: 444W
 · Battery pack size: 113*148*68mm
 · Maximum discharge current: <20A
 · Instantaneous discharge current: 30A~60A
 · Maximum charging current: 0.2-0.5C
 · Charge and discharge times: >500 times
 · Main chip: (Seiko, TI)

24V cylindrical lithium battery
 · Comply with relevant national standards and requirements for batteries
 · All finished battery products have been calibrated and tested before leaving the factory and can be used normally
