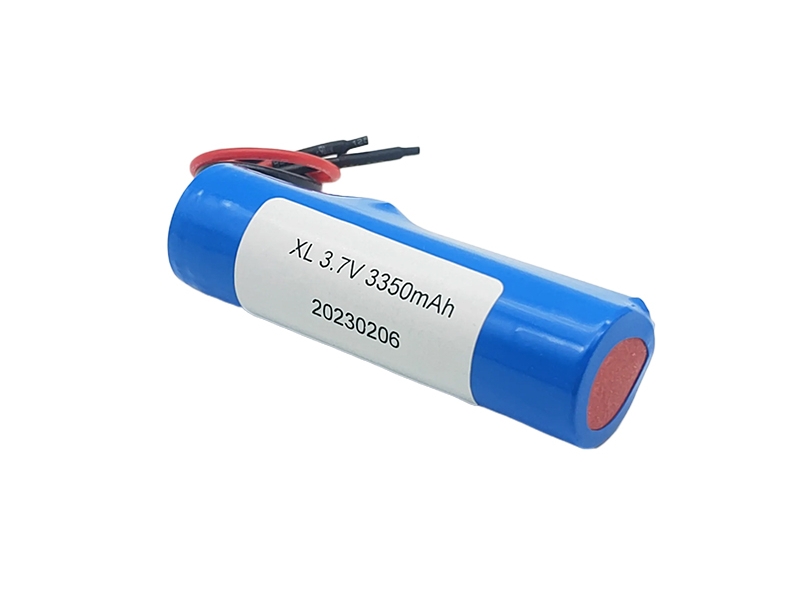

3.7V 3350mAh cylindrical lithium battery
3.7V Cylindrical Lithium Battery Product Model: XL 3.7V 3350mAh
3.7V cylindrical battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650
Packing method: industrial PVC heat shrinkable film
Wire model: UL3239 22AWG

3.7V Cylindrical Lithium Battery Product Model: XL 3.7V 3350mAh
3.7V cylindrical lithium batterytechnical parameters (specific design according to customer requirements-voltage/capacity/size/line)
Single battery model: 18650

·Single battery voltage: 3.7V
·Nominal voltage after the battery pack is assembled: 3.7V
·Single battery capacity: 3.35Ah
·Battery combination: 1 string and 1 parallel
·Battery voltage range after combination: 3.0V-4.2V
·Battery capacity after combination: 3.35ah
· Battery pack power: 12.395Wh
·Battery pack size: 20*20*67mm
·Maximum discharge current: <3.35A
·Instantaneous discharge current: 6.7A-10.05A
·Maximum charging current: 0.2-0.5c
·Charging and discharging times: >500 times
·Main chip: (Seiko, TI)

3.7V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries are calibrated and tested before they leave the factory. Can be used directly
