Smart lithium battery
You are here:Home >> Products >> Smart lithium battery...

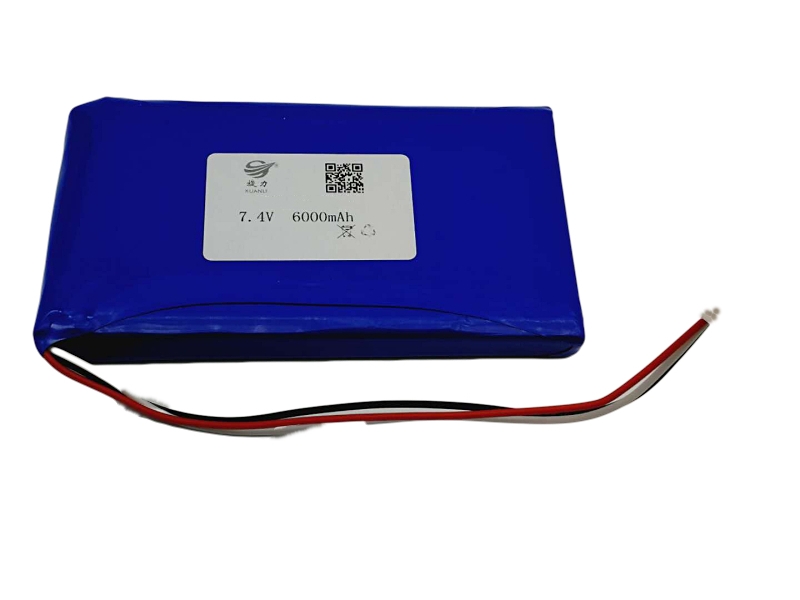

7.4V 6000mAh smart lithium battery
7.4V Smart Lithium Battery Product Model: XL 7.4V 6000mAh
7.4V intelligent lithium technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model: 806090
Packing method: PVC heat shrinkable film
Wire model: UL3239 22AWG
Communication mode: SMBUS

7.4V Smart Lithium Battery Product Model: XL 7.4V 6000mAh
7.4V smart lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)

·Single battery voltage: 3.7V
·The nominal voltage of the battery pack after assembly: 7.4V
·Single battery capacity: 3000mAh
·Battery combination: 2 strings and 2 parallels
·Battery voltage range after combination: 5~8.4V
·Battery capacity after combination: 6000mAh
·Battery pack power: 44.4Wh
·Battery pack size: 19*60*90mm
·Maximum discharge current: <6A
·Instantaneous discharge current: 12~18A
·Maximum charging current: 0.2-0.5C
·Charging and discharging time:> 500 times
·Main chip: TI Seiko BQ series

7.4V smart lithium battery
·Comply with the national standards and requirements related to batteries
·All finished battery products have been calibrated and tested before leaving the factory
