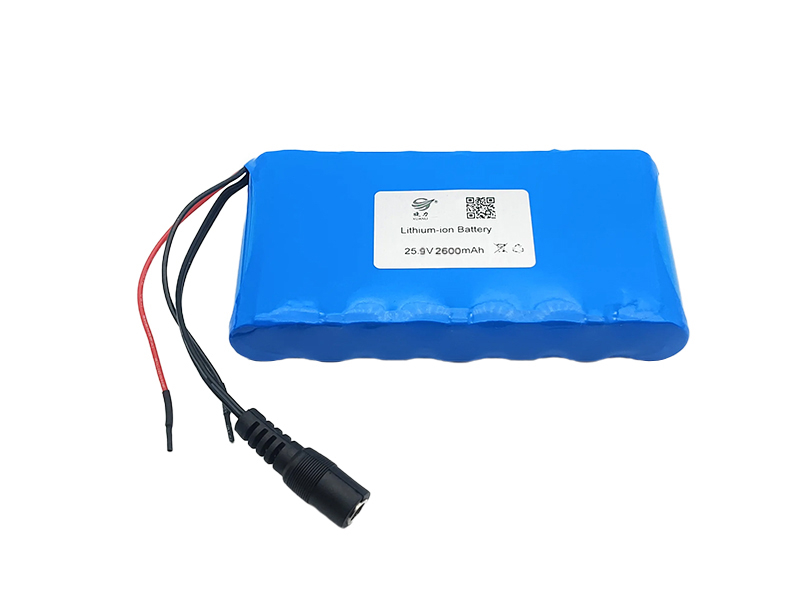

25.9V cylindrical lithium battery product model: XL 25.9V 2600mAh
Technical parameters of 25.9V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
· Single cell voltage: 3.7V
· The nominal voltage of the battery pack after assembly: 25.9V
· Single battery capacity: 2.6Ah
· Battery combination method: 7 series and 1 parallel
· The voltage range of the combined battery is 19.25v-29.4v
· Battery capacity after combination: 2.6Ah
· Battery pack power: 67.34Wh
· Battery pack size: 20*130*71mm (±1mm)
· Maximum discharge current: <3A
· Instantaneous discharge current: 6-12A
· Maximum charging current: 0.2-0.5c
· Charge and discharge cycles: > 500 times
25.9V cylindrical lithium battery
· Comply with relevant national standards and requirements for batteries
· All battery products are calibrated and tested before leaving the factory and can be used directly and normally.
