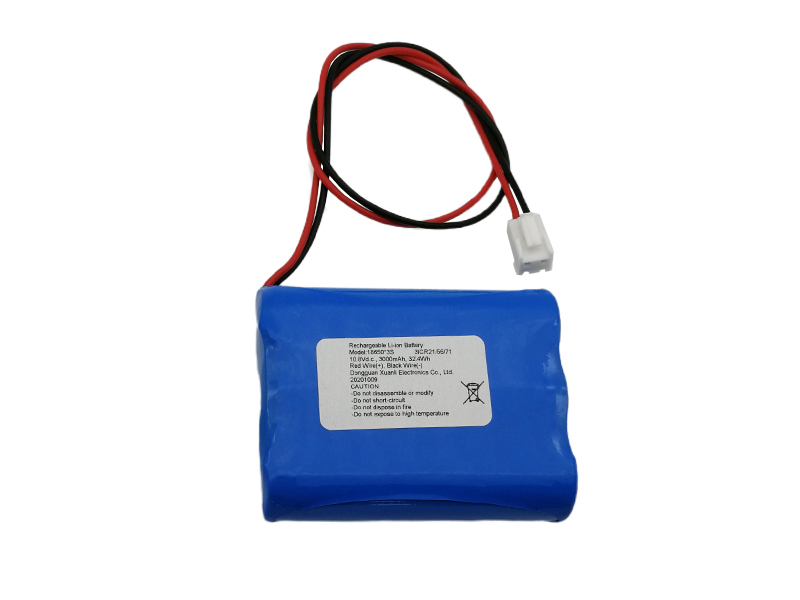

10.8V import lithium battery product model: XL 10.8V 3000mAh

10.8V import lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)

Single battery model: 18650

·Voltage of single cell: 3.6V

·Nominal voltage after battery pack combination: 10.8V

·Capacity of single battery: 3Ah

·Battery combination mode: 3 strings and 1 parallel

·Voltage range of battery after combination: 9~12.6V

·Battery capacity after combination: 3Ah

·Battery pack power: 32.4Wh

·Battery pack size: 20 * 55.5 * 67mm

·Maximum discharge current: < 3A

·Instantaneous discharge current: 5~7A

·Maximum charging current: 0.2~0.5C

·Charging and discharging times: ＞ 500 times

·Main chips: (Seiko, Ti)

10.8V import lithium battery
