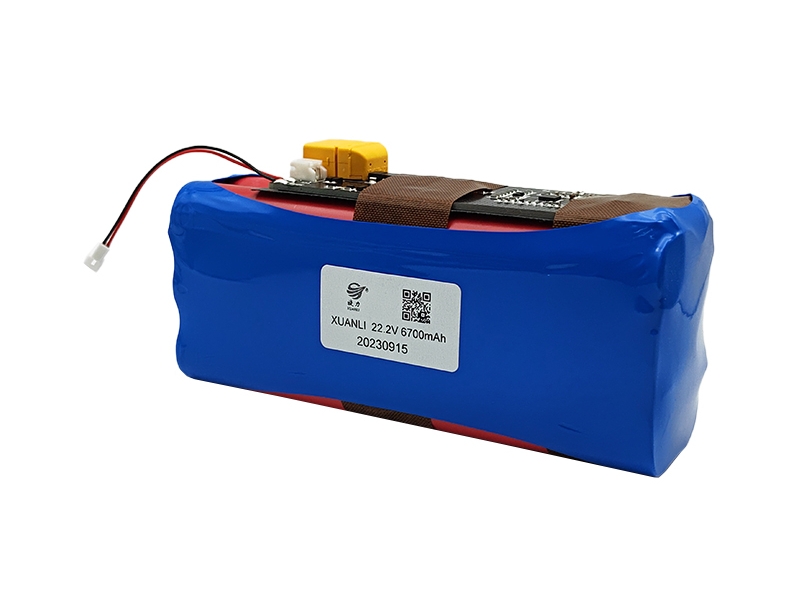

22.2V imported lithium battery Product model: XL 22.2V 6700mAh

Technical parameters of 22.2V imported lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)

Single battery model: 18650

· Single battery voltage: 3.7V

· Nominal voltage after the battery pack is assembled: 22.2V

· Single battery capacity: 3.4Ah

· Battery combination mode: 6 strings and 2 parallels

· Battery voltage range after combination: 15~25V

· Battery capacity after combination: 6.7Ah

· Battery pack power: 148.74Wh

· Battery pack size: 39*55.5*131mm

· Maximum discharge current: <10A

· Instantaneous discharge current: 10~20A

· Maximum charging current: 0.2~0.5C

· Charge and discharge times: >500 times

· Main chip: (Seiko, TI)

22.2V imported lithium battery
