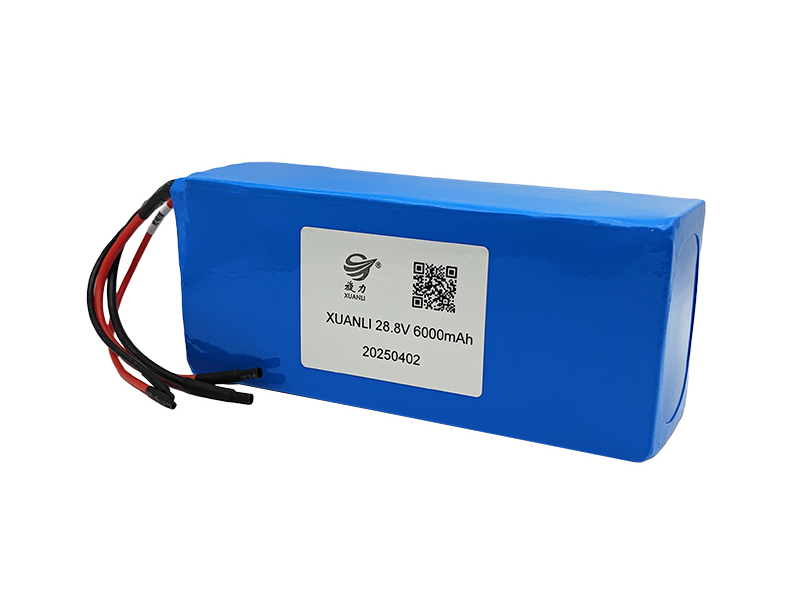

28.8V Imported cylindrical lithium battery product model: XL 28.8V 6000mAh
28.8V Imported cylindrical lithium battery technical parameters (Specific design according to customer requirements - voltage/Capacity/size/circuit)
Single battery model: 18650
· Single cell voltage: 3.7V
· The nominal voltage of the battery pack after combination: 28.8V
· Single-cell battery capacity: 3.0Ah
· Battery combination method: 8 series and 2 parallel
· The voltage range of the combined battery is 24~33.6V
· Battery capacity after combination: 6Ah
· Battery pack power: 172.8Wh
· Battery pack size: 42*74*155mm
· Maximum discharge current: < 6A
· Instantaneous discharge current: 12~18A
· Maximum charging current: 0.2~0.5C
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI)
28.8V imported cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
