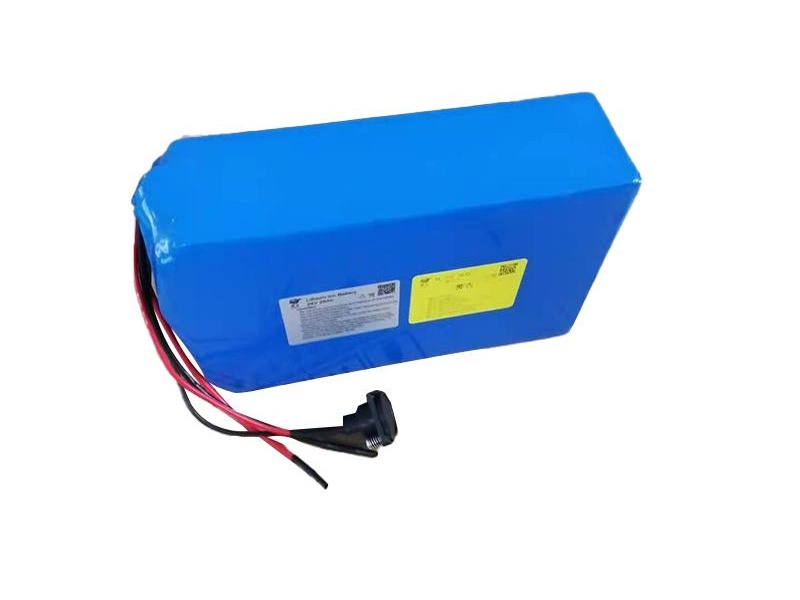

24V power lithium battery product model: XL 24V 31200mAh
24V power lithium battery technical parameters (specifically, it can be designed according to customer requirements - voltage/capacity/dimension/wiring)
Single battery model: 18650
· Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled: 22.2V
· Single battery capacity: 2.6Ah
· Battery combination mode: 6 strings and 12 parallels
· Battery voltage range after combination: 15~25.2V
· Battery capacity after combination: 31.2Ah
· Battery pack power: 692.64Wh
· Battery pack size: 75*125*270mm
· Maximum discharge current: <30A
· Instantaneous discharge current: 50~80A
· Maximum charging current: 0.2~0.5C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
24V power battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
