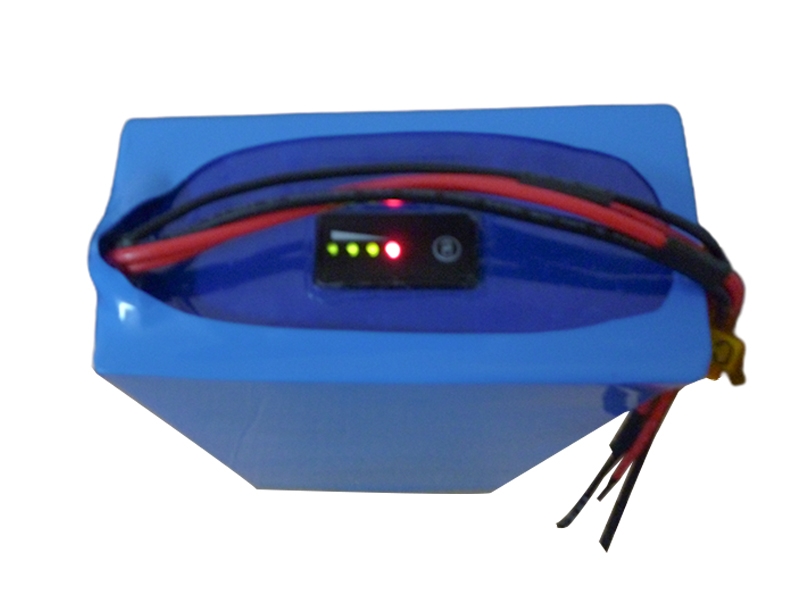

power lithium battery Product model: XL 48V 20Ah
48V power lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)


Single battery model: 18650·
 Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled: 48V
· Single battery capacity: 2.5Ah
· Battery combination mode: 13 strings and 8 parallels
· Battery voltage range after combination: 32.5~54.6V
· Battery capacity after combination: 20Ah
· Battery pack power: 960Wh
· Battery pack size: 75*160*286mm
· Maximum discharge current: <20A
· Instantaneous discharge current: 40~60A
· Maximum charging current: 0.2~0.5C
· Charge and discharge times: >300 times
· Main chip: (Seiko, TI)


48V power lithium battery
