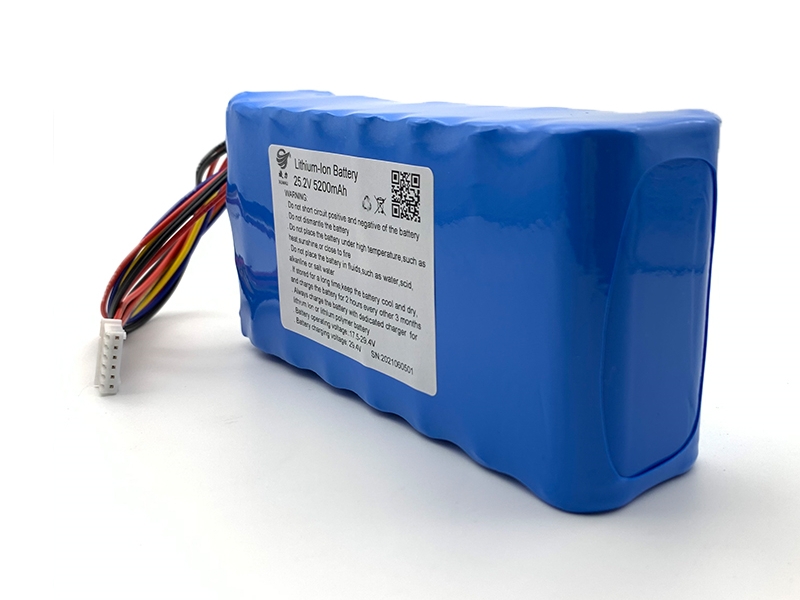

25.2V communication lithium battery product model: XL 25.2V 5200mAh

25.2V communication lithium battery technical parameters (specific design can be based on customer requirements - voltage/capacity/size/line)

Single battery model: 18650

·Single battery voltage: 3.6V

·Nominal voltage of battery pack after assembly: 25.2V

·Single battery capacity: 2.6Ah

·Battery combination: 7 series and 2 parallel

·Battery voltage range after combination: 17.5~29.4V

·Battery capacity after combination: 5.2Ah

·Battery pack power: 131.04Wh

·Battery pack size: 39 * 67 * 130mm

·Maximum discharge current:<5.2A

·Instantaneous discharge current: 10.4~15.6A

·Maximum charging current: 0.2~0.5C

·Charging and discharging time:>500 times

·Main chip: TI 、Seiko

25.2V communication lithium battery
