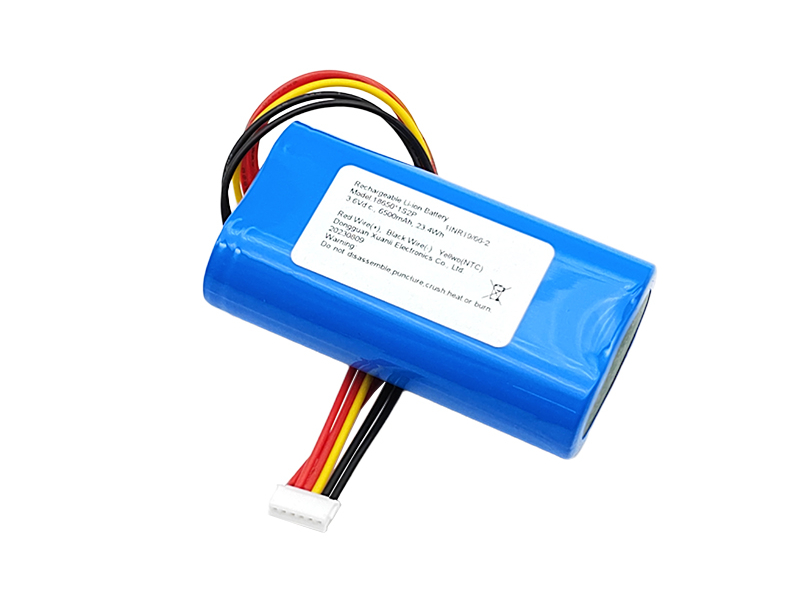

3.6V cylindrical lithium battery product model: XL 3.6V 6500mAh

Technical parameters of 3.6V cylindrical lithium battery (specific can be designed according to customer requirements - voltage/capacity/size/line)

Model of single battery: 18650

·                               Single battery voltage: 3.6V

·                               Nominal voltage after battery pack combination: 3.6V

·                               Single battery capacity: 3.25Ah

·                               Battery combination mode: 1 series and 2 parallel

·                               Battery voltage range after combination: 3.0~4.2V

·                               Battery capacity after combination: 6.5Ah

·                               Battery pack power: 23.4Wh

·                               Battery pack size: 20 * 40 * 69mm

·                               Maximum discharge current: ＜ 6.5A

·                               Instantaneous discharge current: 13~19.5A

·                               Maximum charging current: 0.2~2C

·                               Charging and discharging times: ＞ 500 times

·                               Main chips: (Seiko, TI)

3.6V cylindrical lithium battery
