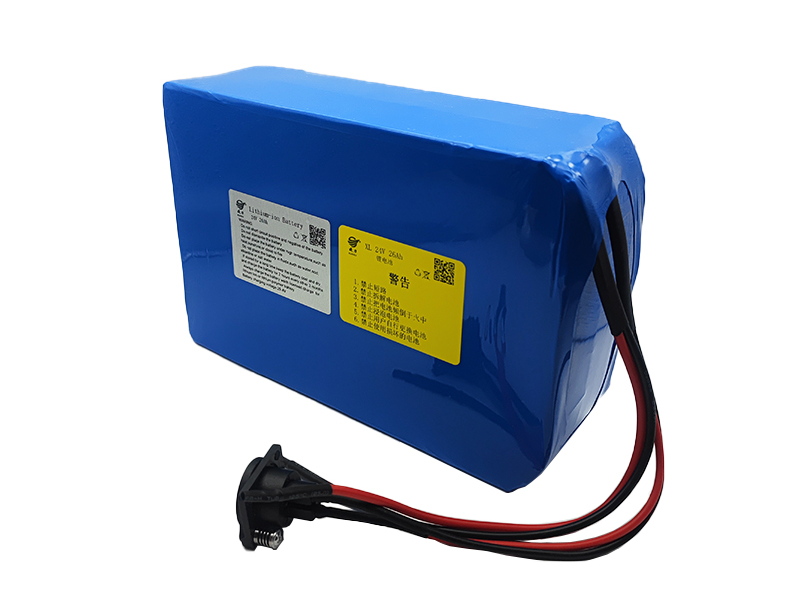

24V Low temperature lithium battery Product Model: XL 24V 26000mAh
24V Low-temperature lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)


Single battery model: 18650
 · Single battery voltage: 3.7V
 · Nominal voltage after the battery pack is assembled: 24V
 · Single battery capacity: 2.6Ah
 · Battery combination mode: 6 strings and10 parallels
 · Battery voltage range after combination: 18~25.2V
 · Battery capacity after combination: 26Ah
 · Battery pack power: 624Wh
 · Battery pack size: 113*185*68mm
 · Maximum discharge current: <26A
 · Instantaneous discharge current: 52~78A
 · Maximum charging current: 0.2~0.5C
 · Charge and discharge times: >500 times
 · Main chip: (Seiko, TI)


24V Low temperature lithium battery
